GPS Tracker Installation: What to Expect
1. The Two Main Types of Installations
Before diving into the process, it is critical to understand that not all tracking devices are installed the same way. The installation of a vehicle tracking device primarily falls into two categories based on hardware type.

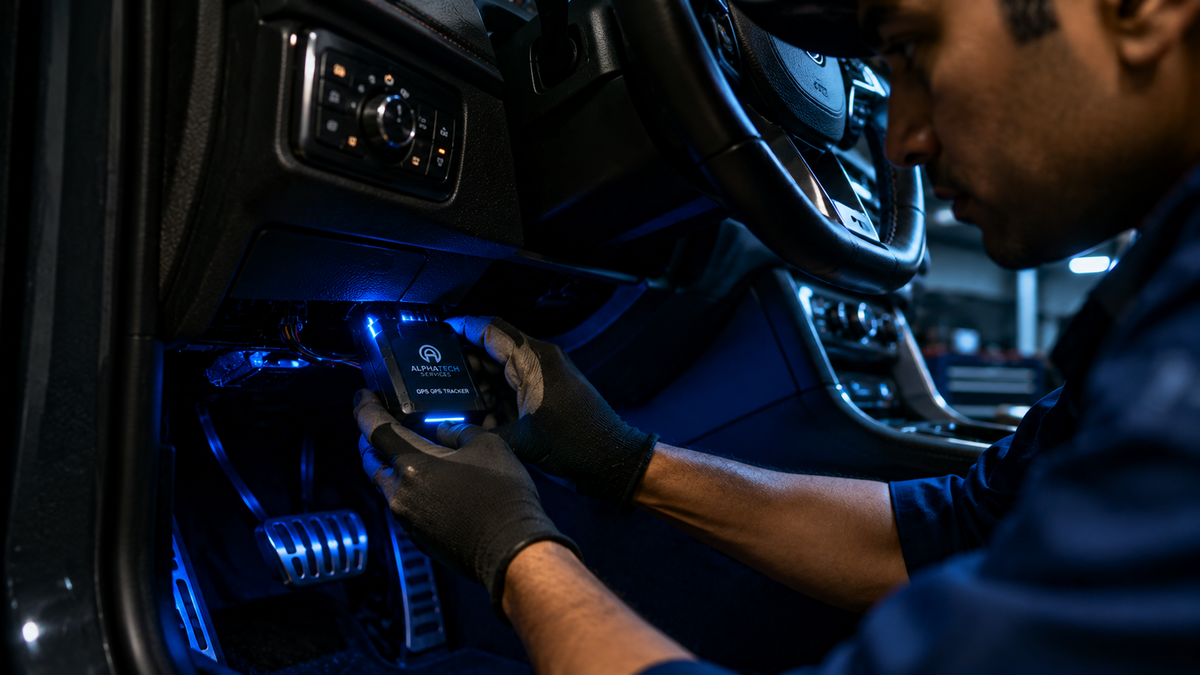

OBD Plug-and-Play
Takes less than 10 seconds. The device plugs directly into the car's OBD-II diagnostic port. Zero wiring required, instantly ready.
Hardwired Installation
Takes 30-60 minutes. Requires an auto-electrician to splice into the vehicle's electrical system for covert placement and engine cut-off.
2. Step-by-Step: Hardwired Installation Process
For high-security applications, such as installing a gps tracker for bike or a commercial fleet vehicle, hardwiring is mandatory. Here is the exact timeline of what you can expect when an Alphatech technician works on your vehicle.
Step 1: Identifying the Optimal Hidden Location
The first rule of a successful bike tracking system or car tracker is invisibility. For cars, the technician will typically remove the dashboard panels to hide the device behind the stereo, glovebox, or instrument cluster. For motorcycles, the device is usually sealed securely near the battery box or tucked deep inside the front headlight cowl to protect it from weather and thieves.
Step 2: Securing the Power Connection (3-Wire System)
The technician will identify the vehicle's electrical harness. A standard tracker uses a 3-wire setup:
Red Wire (VCC): Connected to constant 12V/24V power so the tracker stays on when the car is off.
Black Wire (GND): Grounded to the vehicle's metal chassis to complete the circuit.
Orange/White Wire (ACC): Connected to the ignition switch to detect when the engine turns on and off.
Step 3: Installing the Engine Immobilizer Relay (Optional but Recommended)
If your device supports remote engine cut-off, the technician will splice a heavy-duty relay into the vehicle's fuel pump wire or ignition coil. This allows you to safely disable the vehicle via the Alphatech app in the event of a theft.
Step 4: Antenna Positioning
Even though the tracker is hidden, the internal GPS and GSM antennas must face the sky and cannot be obstructed by solid metal. The technician will tape or zip-tie the device facing upwards under a plastic dashboard or fiberglass panel to ensure maximum satellite reception.
Step 5: Software Activation and Quality Check
Before closing the vehicle panels, the technician will power up the device, ensure the LED indicator lights reflect a strong network and GPS signal, and verify the bike location tracker is pinging accurately on the Alphatech server interface.
3. Do's and Don'ts of Tracker Installation
Whether you are attempting a DIY installation or hiring a local mechanic, adhere to these critical guidelines to prevent catastrophic damage to your vehicle's ECU (Engine Control Unit).
DO: Use a Multimeter
Always use a digital multimeter to test wires before cutting. Never guess which wire is constant power and which is ignition.
DON'T: Cut Airbag Wires
In modern cars, airbag wires are typically wrapped in yellow tubing. Never tamper with these wires under any circumstances.
DO: Solder and Heat Shrink
Twisting wires and covering them with cheap electrical tape will fail over time. Professional installations require soldering and heat-shrink tubing.
4. Special Considerations for Bikes and Two-Wheelers
Installing a gps tracking device for bikes requires extra care. Motorcycles vibrate aggressively and are constantly exposed to water. The technician must ensure the device is firmly zip-tied to the chassis so it doesn't rattle against the plastics. Furthermore, ensuring the connections are heavily insulated with waterproof silicone is vital to prevent short circuits during monsoon riding or pressure washing.
5. The Final Handover
Once the installation is complete, the Alphatech team will guide you through the mobile application. You will learn how to set up geo-fences, monitor live speeds, playback historical routes, and execute the remote engine cut-off command safely.
Book Your Professional InstallationFrequently Asked Questions
Will hardwiring a GPS tracker void my vehicle's warranty?
If done incorrectly by splicing main harnesses roughly, it can. However, professional installers use non-destructive wire taps or fuse-box adapters (Add-A-Circuit) to draw power safely without voiding the manufacturer's warranty.
How long does a GPS tracker installation take?
An OBD plug-and-play tracker takes seconds. A standard hardwired vehicle tracking device takes about 30 to 45 minutes, while complex commercial setups with fuel sensors can take up to 2 hours.
Can I install a GPS tracker myself?
If you have basic knowledge of 12V auto-electrics and a multimeter, a basic 3-wire installation is possible for DIY. However, wiring an engine-cut-off relay is highly technical and we strongly advise using a professional Alphatech technician.
